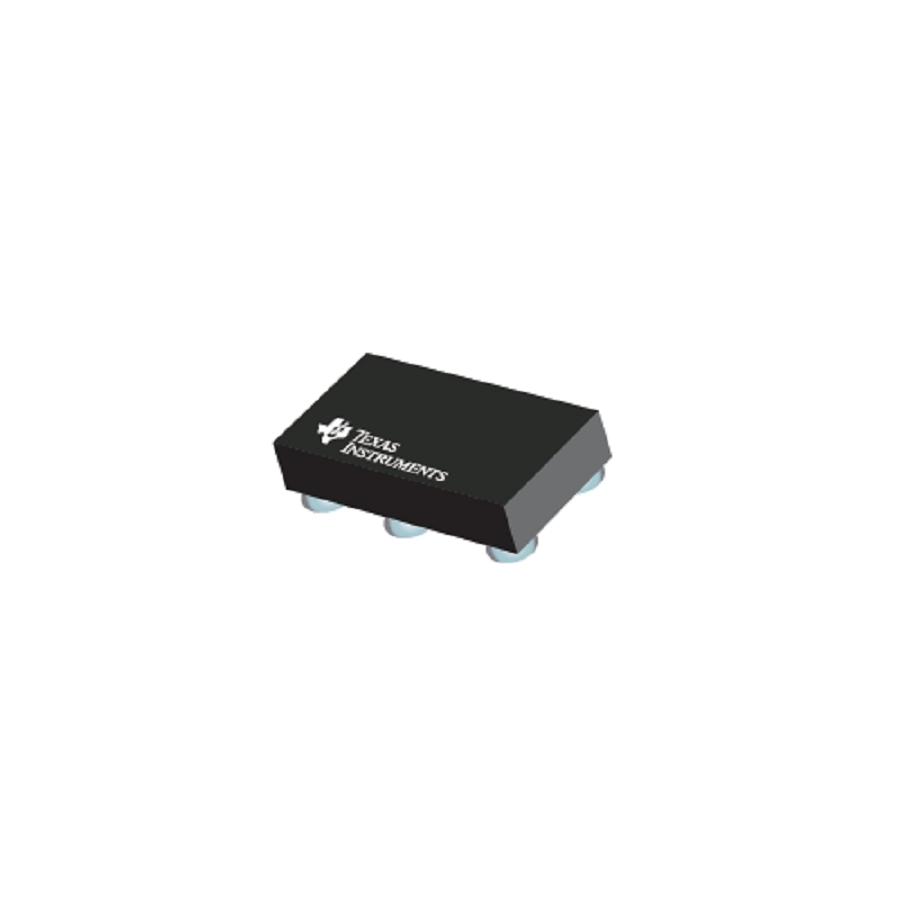

CSD83325L
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD83325L
Datasheet:
Description:
MOSFETs PICOSTAR-6 SMD/SMT N-Channel number of channels:2 2.3 W 12 V Continuous Drain Current (ID):8 A 10.9 nC
| Parameter | Value |
|---|---|
| Length | 1.11 mm |
| Width | 2.16 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Height | 220 µm |
| Packaging | Reel |
| Thickness | 0.2 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Power Dissipation | 2.3 W |
| Power Dissipation | 2.3 W |
| Number of Channels | 2 |
| Continuous Drain Current (ID) | 8 A |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-On Delay Time | 205 ns |
| Turn-Off Delay Time | 711 ns |
| Element Configuration | Dual |
| Rise Time | 353 ns |
| Gate Charge | 10.9 nC |
| Drain to Source Resistance | 11.9 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | -10 V, 10 V |
| Drain to Source Breakdown Voltage (Vds) | 12 V |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Gate to Source Threshold Voltage | 750 mV |
Stock: 1
Distributors
pcbx
pcbxUnit Price$0.37565
Ext.Price$0.37565
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.37565 | $0.37565 |
| 10 | $0.30144 | $3.01440 |
| 25 | $0.27771 | $6.94275 |
| 50 | $0.25585 | $12.79250 |
| 100 | $0.23571 | $23.57100 |
| 300 | $0.23106 | $69.31800 |
| 500 | $0.22650 | $113.25000 |
| 1000 | $0.22194 | $221.94000 |
